Chassis Link Tabs

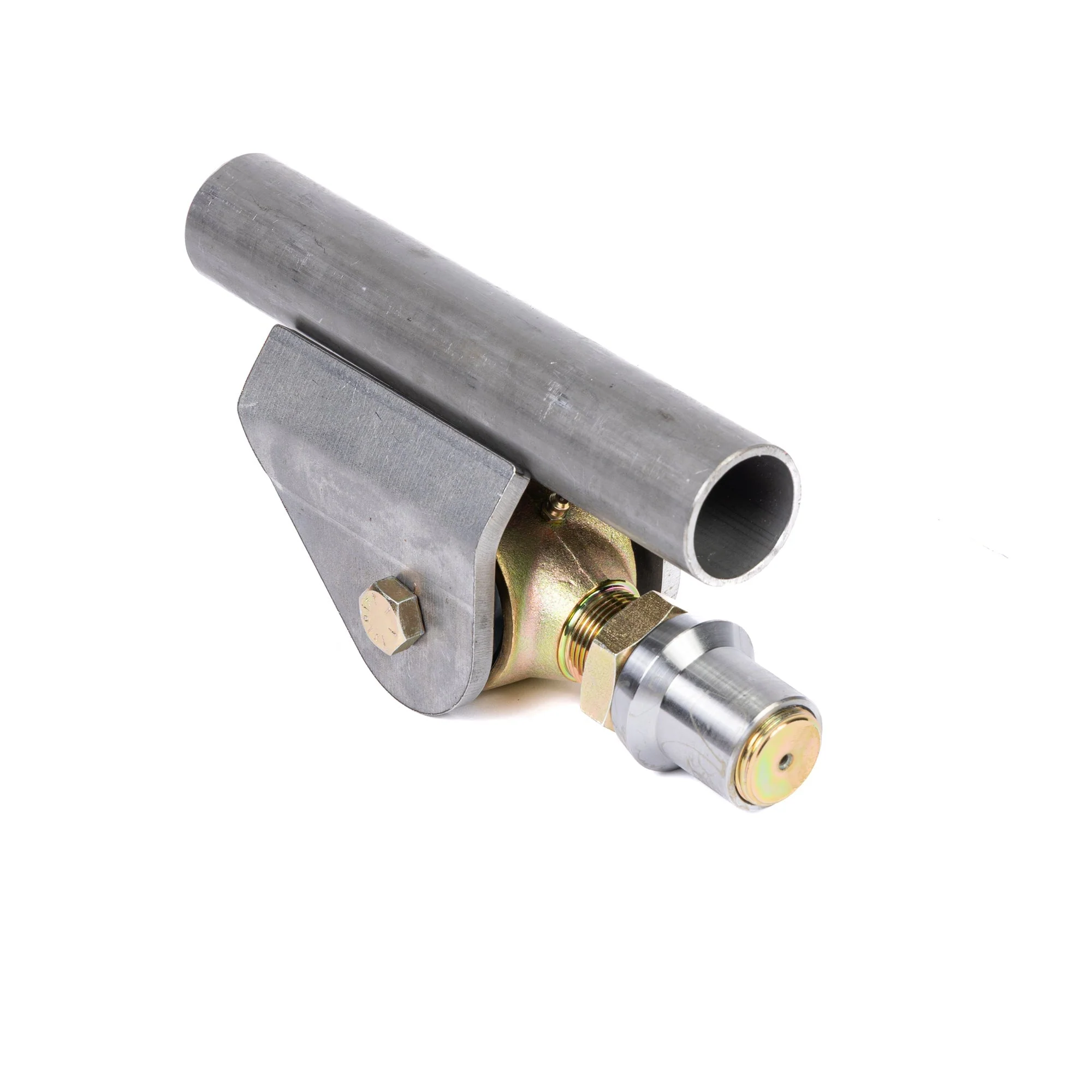

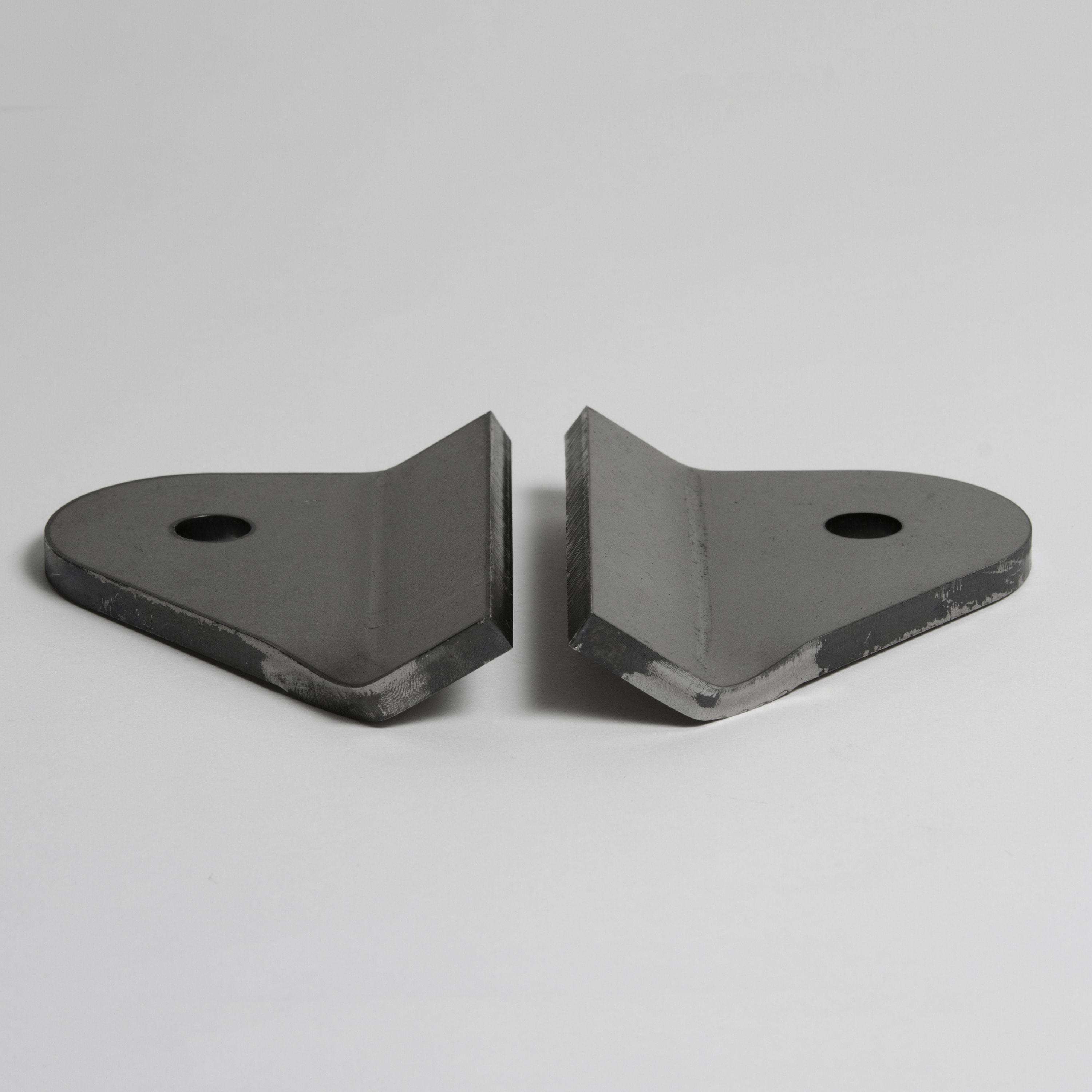

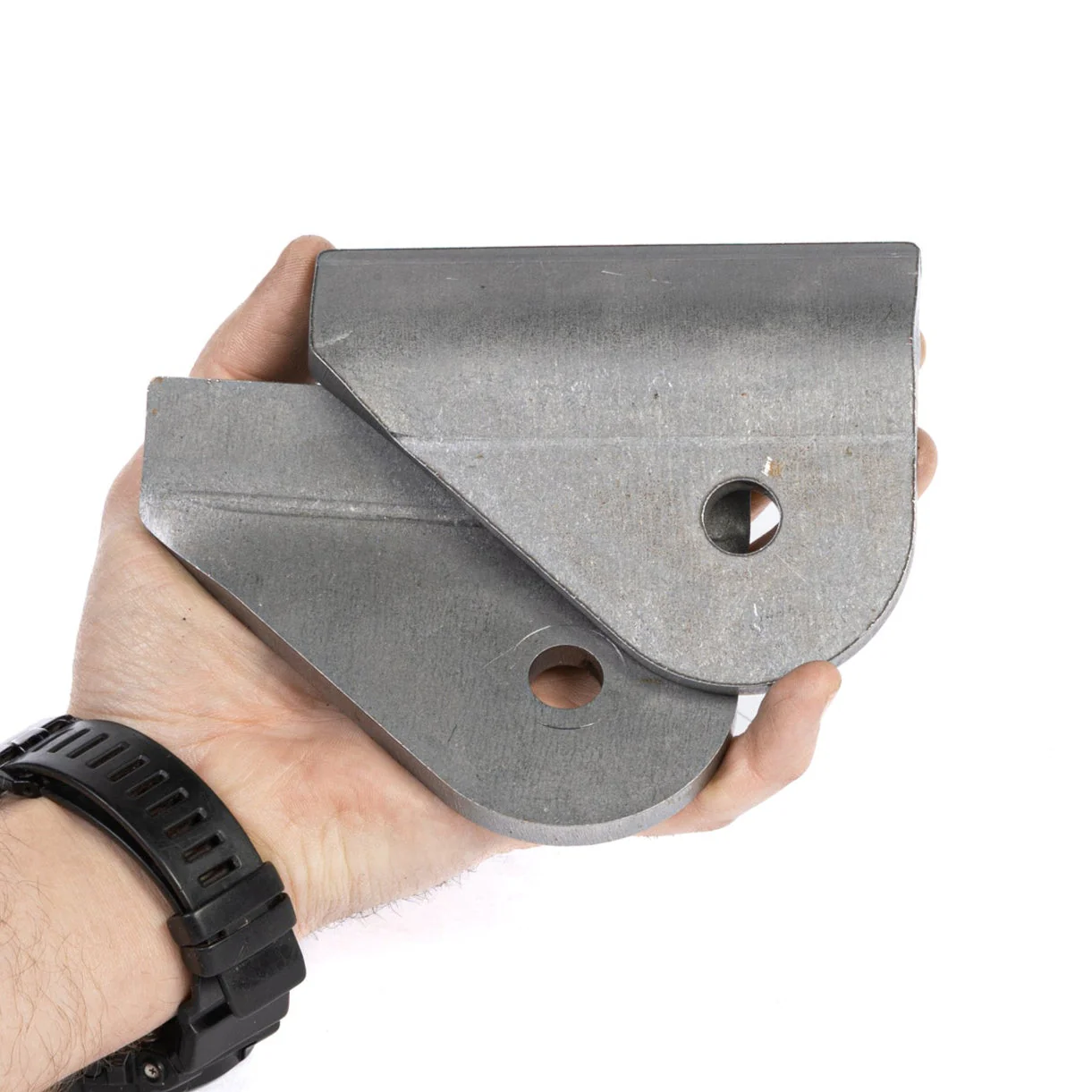

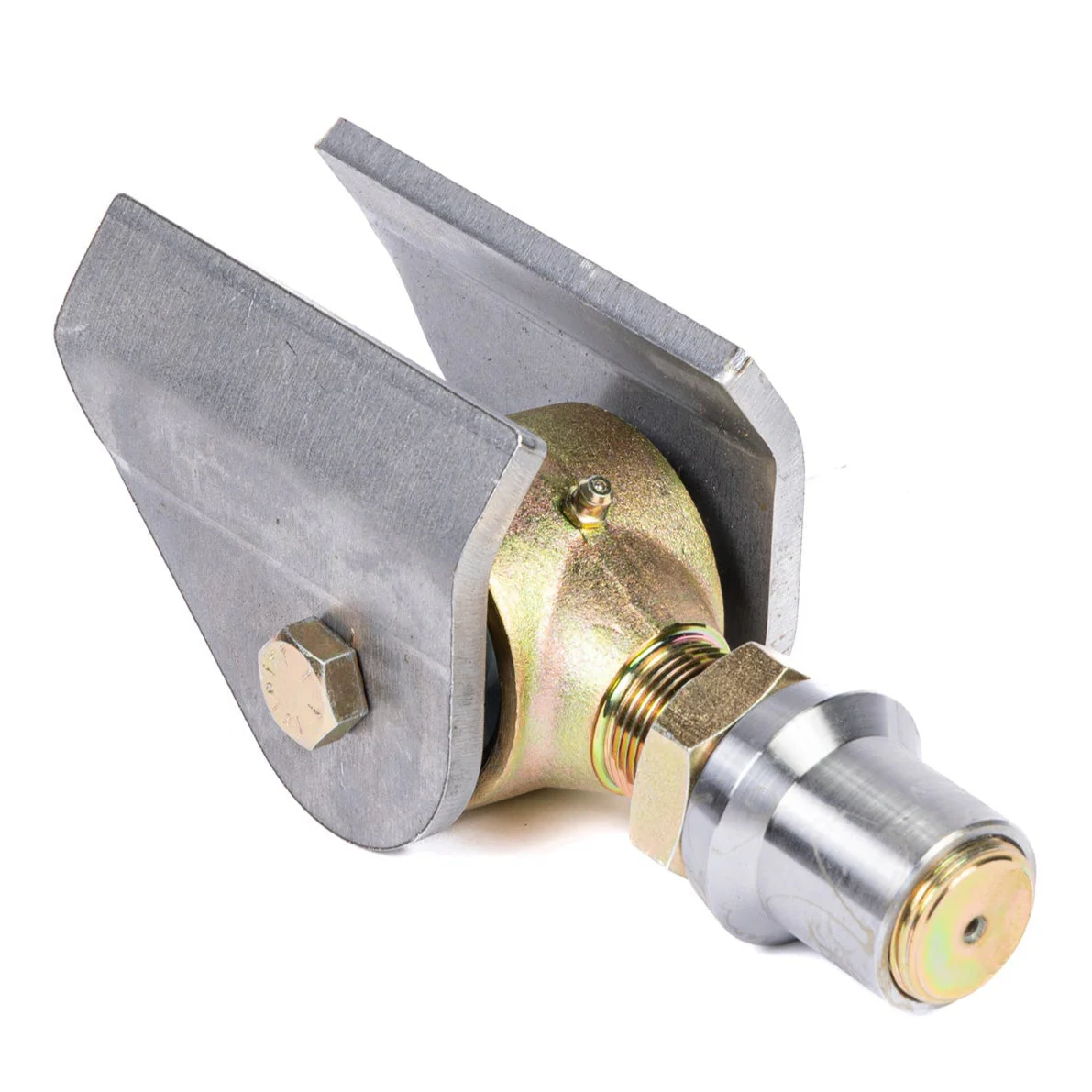

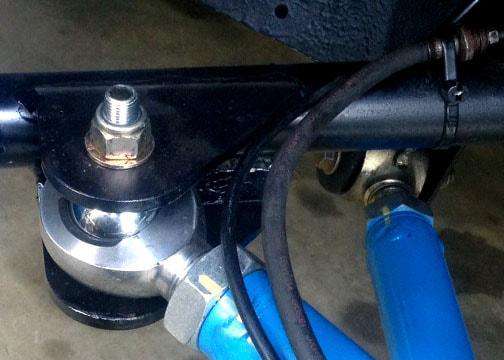

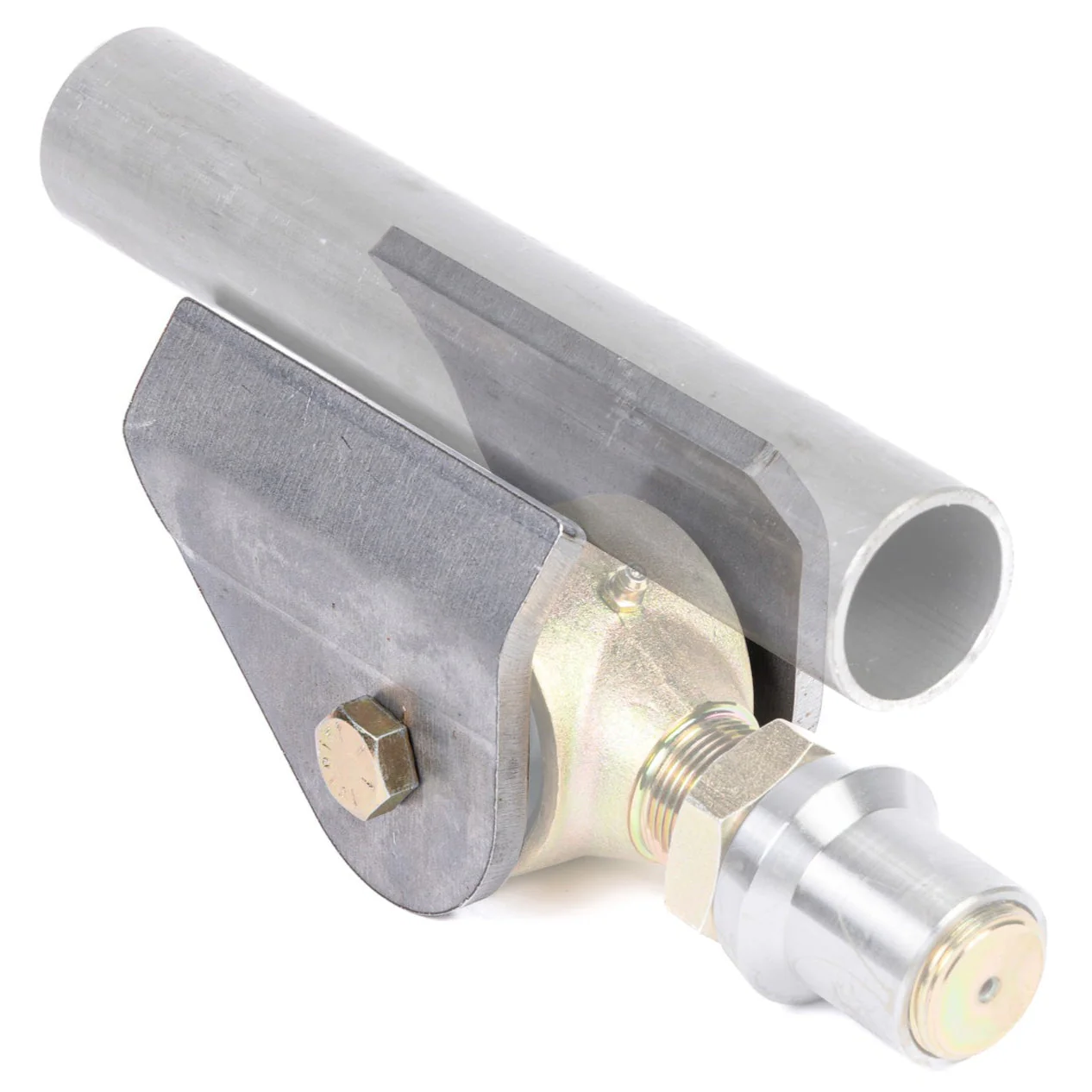

TMR Chassis Link Tabs are the go-to solution for mounting suspension links to tube chassis or tube subframes. Whether you're building a rock crawler, rock bouncer, race truck, or custom street machine, these tabs deliver the strength and precision your build deserves.
âś… Precision Fit for 1.75" OD Tubing
CNC laser cut and formed for a perfect wrap around 1.75" tube—no guesswork, no gaps. (also can be used with 1.5", 1.625" and 2" tubing with slight modification)
âś… Ready for Big Loads

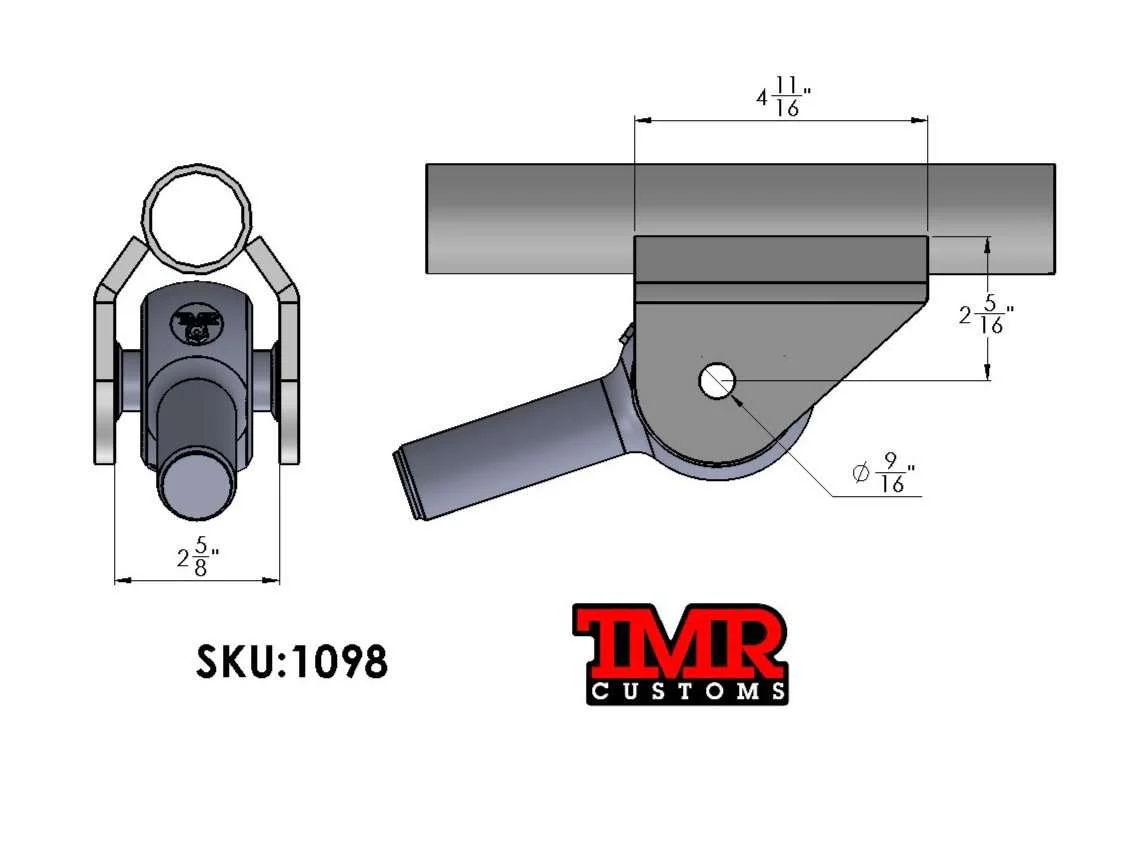

Designed for 9/16" bolts and 2-5/8" wide joints, the hole size can easily be drilled larger if needed.
âś… Fabricator Approved
Used on our in-house builds and race vehicles. If it’s strong enough for King of the Hammers, it’s strong enough for anything.
âś… No Corners Cut
No thin material. No sloppy holes. No overseas shortcuts. Just pure, pro-grade fab hardware you can trust.
- Fits Johnny Joints, Poly Bushings, Rod Ends with Misalignment Spacers, etc
- Can be oriented to mount your joint horizontal or vertical
- Contains 1 pair of tabs to mount 1 Suspension Joint!
Original: $21.99
-65%$21.99
$7.70More Images
Chassis Link Tabs
TMR Chassis Link Tabs are the go-to solution for mounting suspension links to tube chassis or tube subframes. Whether you're building a rock crawler, rock bouncer, race truck, or custom street machine, these tabs deliver the strength and precision your build deserves.
âś… Precision Fit for 1.75" OD Tubing
CNC laser cut and formed for a perfect wrap around 1.75" tube—no guesswork, no gaps. (also can be used with 1.5", 1.625" and 2" tubing with slight modification)
âś… Ready for Big Loads
Designed for 9/16" bolts and 2-5/8" wide joints, the hole size can easily be drilled larger if needed.
âś… Fabricator Approved
Used on our in-house builds and race vehicles. If it’s strong enough for King of the Hammers, it’s strong enough for anything.
âś… No Corners Cut
No thin material. No sloppy holes. No overseas shortcuts. Just pure, pro-grade fab hardware you can trust.
- Fits Johnny Joints, Poly Bushings, Rod Ends with Misalignment Spacers, etc
- Can be oriented to mount your joint horizontal or vertical
- Contains 1 pair of tabs to mount 1 Suspension Joint!
